Septic truck - JUGGLER™

Liquid & solid separation system for septic application

The JUGGLER™ is the most profitable septic tanks collector unit. Its proprietary centrifugal filtration system allows it to empty 9 to 10 tanks on one trip.

  • 1 200 gallons (US) rear / 3 600 gallons (US) front capacities in a unitized tank
  • 1 600 CFM – 27’’ HG vacuum pump driven by hydrostatic motor
  • Hydraulic pumps mounted on transmission PTOs.

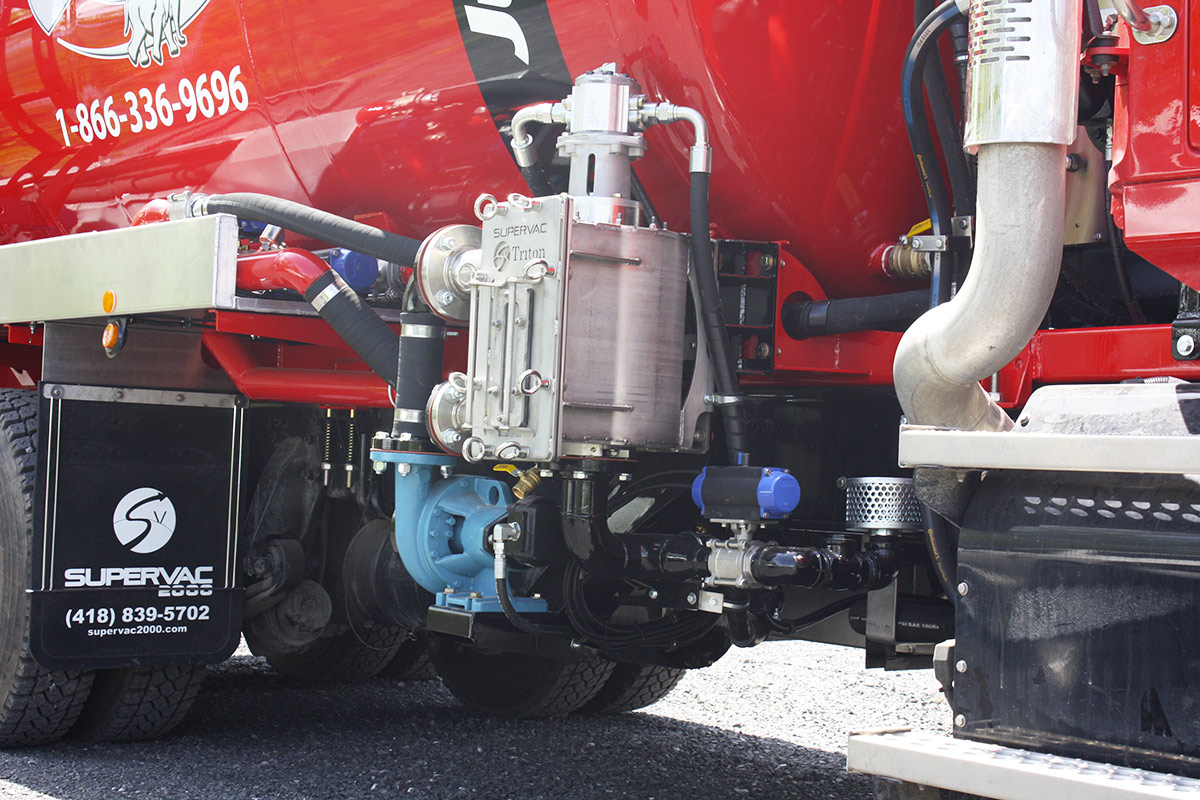

  • JUGGLER centrifugal ultrasonic filtration system and rotary lobe water supply pump driven by hydraulic motors
  • 200’ – 3’’ rear mounted hose reel with hydraulic rotation and pivoting
Get a quote for JUGGLER™ Download the brochure Get a demo View gallery
Custom red sceptic truck
septic truc liquid solid separation system septic truc liquid solid separation system septic truc liquid solid separation system septic truc liquid solid separation system septic truc liquid solid separation system septic truc liquid solid separation system septic truc liquid solid separation system septic truc liquid solid separation system septic truc liquid solid separation system septic truc liquid solid separation system View gallery
Sanitary truck

Discover the Juggler by Supervac : a liquid & solid separation system!

Watch this video for an overview of the Juggler. The pumping and liquid-solid separating system from Supervac is designed for use servicing grease traps and septic tanks, without the use of chemicals. The key to the unit’s potential savings lies in a filtration system designed to return a liquid that is almost free of solids right back into the septic tank, without affecting bacterial action.

Technical specifications

Get the best equipment for your septic truck

Hose reel 36″ with remote control operation.

1

3600 Gallons (US) Solids capacity.

2

1200 Gallons (US) Grey water capacity.

3

Pre-filtration unit.

5

100 microns Juggler filtration unit, auto-cleaning (option 200 microns available).

6

Circulation pump, hydraulic driven.

7

80 Gallons (US) Hydraulic tank with dual return filters.

8

6″ Discharge valve.

9

Two (2) separate hydraulic cooler.

10

Water and solid level.

11

Primary shut-off valve inside top of tank.

12

Secondary shut-off valve outside protection.

13

2 x 20″ manholes.

14

Working lights at rear and sides of unit.

15

Ladder & Handrail on curbside.

16

Rear control pad.

17

Main control panel on driver side.

18

Hose trays on both sides.

19

Toolbox – Driver side.

20

4-way valve on blower (driver side).

21

Rear bumper.

22

Pneumatic actuated valves.

24

4-way valve on blower (driver side).

21

Two (2) separate hydraulic cooler.

10

Working lights at rear and sides of unit.

15
JUGGLER
  1. Hose reel 36″ with remote control operation;
  2. 3600 Gallons (US) Solids capacity;
  3. 1200 Gallons (US) Grey water capacity;
  4. 1400 CFM Blower – Hot shift PTO Driven;
  5. Pre-filtration unit;
  6. 100 microns Juggler™ filtration unit, auto-cleaning (option 200 microns available);
  7. Circulation pump, hydraulic driven;
  8. 80 Gallons (US) Hydraulic tank with dual return filters;

  1. 6″ Discharge valve;
  2. Two (2) separate hydraulic cooler;
  3. Water and solid level;
  4. Primary shut-off valve inside top of tank;
  5. Secondary shut-off valve outside protection;
  6. 2 x 20″ manholes;
  7. Working lights at rear and sides of unit;
  8. Ladder & Handrail on curbside;

  1. Rear control pad;
  2. Main control panel on driver side;
  3. Hose trays on both sides;
  4. Toolbox – Driver side;
  5. 4-way valve on blower (driver side);
  6. Rear bumper;
  7. Electro-Hydraulic control valve (driver side);
  8. Pneumatic actuated valves.

Go beyond your goal with a customized sanitary equipment

All of Supervac equipments are custom made to meet the specific needs of each customer.
